     Flood Protection

Mobile flood protection walls - River embankment
Industrial and municipal object and area protection



Our flood protection walls are made of aluminium alloy for the application for fixed walls, or mobile walls and they are designed for easy and simple installation and dismantling.

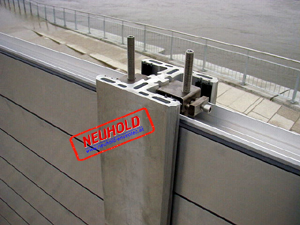

The system essentially comprises sections formed by aluminium columns and the stop planks in between. Each section is in accordance with the local requirements between 1.0 and 6.0 m long, but all stop planks of one wall unit will have the same length so that no confusion is possible, when the stop planks need to be installed. For the wall we recommend a RC foundation with recesses for the anchors, which we will provide. Replaceable floor sealings, column sealings and stop plank sealings made of UV resistant material will be provided. The sealings will be held by the positive hold profiles of the stop planks and the columns. No glued joint sealings will be allowed!



Advantages:

- Easy manipulation and installation because of the low  weight of
  the aluminium dam bars



- All components are designed symmetrically and possess a clear
  assembly position, hence an extensive  training of the
  responsible personnel isn't  necessary.



- A special seal in the lowest dam bar is able to compensate
  ground unevenness up to +/- 15 mm.



- The pressing of the dam bars and the special seal is done by
  the same adjustable clamp at any flood height.



- The end columns which are fix installed are protected by covers.
  This ensures that they are protected against damages and
  environmental influences.



- We can offer also a special storage system for the mobile flood
  protection components. This ensures an extension of the lifetime
  of the components, because seals are relieved and contact
  corrosion is excluded.

Range of applications:

Approach roads







River walls











Block up of











 Protection of flood threatened









Entrance areas



Gateways

Railroads





Increasing and improvement of the existing protection standard





Traffic routes,

sidewalks,

underpasses,

etc.





Roads,

areas,

lanes





Front doors
